In water quality monitoring, nitrite (NO₂⁻) concentration serves as a critical indicator for assessing water safety. It attracts extensive attention in aquaculture, drinking water treatment, industrial wastewater discharge monitoring and surface water environment supervision. Selecting a proper online nitrite sensor determines data accuracy and system stability, and directly affects operation & maintenance costs and monitoring efficiency. This guide sorts out key considerations for sensor selection from four dimensions: measurement principles, performance specifications, application scenarios and maintenance requirements.

1. Clarify Measurement Principles to Match Practical Requirements

Three mainstream measurement principles are adopted by current online nitrite sensors:

Ion-Selective Electrode (ISE) Method It measures potential variations via a PVC membrane ion-selective electrode to calculate ion concentration indirectly. Featuring fast response, reagent-free operation and low maintenance cost, it suits long-term continuous online monitoring and is barely affected by water turbidity and color. Most industrial-grade sensors adopt this principle, with long electrode service life and stable reference electrode systems.

Colorimetric Method (Spectrophotometry) A color-developing reaction generates chromatic compounds for absorbance measurement. It delivers low detection limits and high precision (down to 0.001 mg/L). However, regular replacement of color reagents is required, leading to heavy maintenance workload and high consumable expenses.

Full-Spectrum Method No reagents are needed; detection relies on characteristic wavelength light absorption. Nevertheless, the upfront equipment investment is relatively high, and it applies to high-end monitoring scenarios.

Selection Recommendation: Choose ISE sensors if low maintenance and long-term stable operation are priorities. Opt for colorimetric sensors when ultra-high precision is required and sufficient maintenance resources are available. Full-spectrum sensors are worthy of consideration for projects with adequate budget and demand for reagent-free operation.

2. Verify Core Performance Specifications

Compare the following key indicators carefully during selection:

• Measuring Range & Resolution: Drinking water monitoring generally requires a low range of 0~1 mg/L, while industrial wastewater and aquaculture ponds may demand 0~10 mg/L or wider ranges. The resolution is recommended to be no worse than 0.01 mg/L; 0.001 mg/L is preferred for high-precision applications.
• Accuracy: Typical accuracy of ISE sensors is around ±5%, while colorimetric sensors can reach ±3% or better. Confirm acceptable error tolerance based on monitoring purposes: early warning, compliance supervision or research.
• Response Time: Sensors shall respond within tens of seconds for sudden pollution early warning, a requirement that most ISE sensors can satisfy.
• Temperature Compensation: Built-in temperature sensors (e.g., Pt1000) enable automatic temperature compensation to eliminate measurement drift caused by temperature fluctuation, an essential function for online monitoring.

3. Evaluate Application Scenarios & Environmental Compatibility

Different water environments impose distinct requirements on sensor resistance and anti-interference performance:

• Clean water bodies (surface water, drinking water): Sensitivity is prioritized, with few interfering ions present.
• Complex water bodies (industrial wastewater, aquaculture tailwater): Multiple coexisting ions (chloride ions, sulfide ions, etc.) may exist. Confirm the anti-interference design and selectivity coefficient of the sensor.
• High-turbidity or high-organic-matter water bodies: ISE sensors suffer minimal turbidity interference, whereas colorimetric sensors are vulnerable to color interference, which needs evaluation in advance.
• High-salinity environments (seawater): Select sensors with salt-corrosion-resistant housing materials.

Besides, installation method matters. Submersible installation is widely adopted. Note sensor mounting angle requirements: vertical inversion and horizontal installation are usually prohibited; a tilt angle of at least 15° is needed to avoid air bubble accumulation. 316L stainless steel is recommended for the housing, and the protection rating shall reach IP68 to support long-term underwater immersion.

4. Review Communication Output & Maintenance Convenience

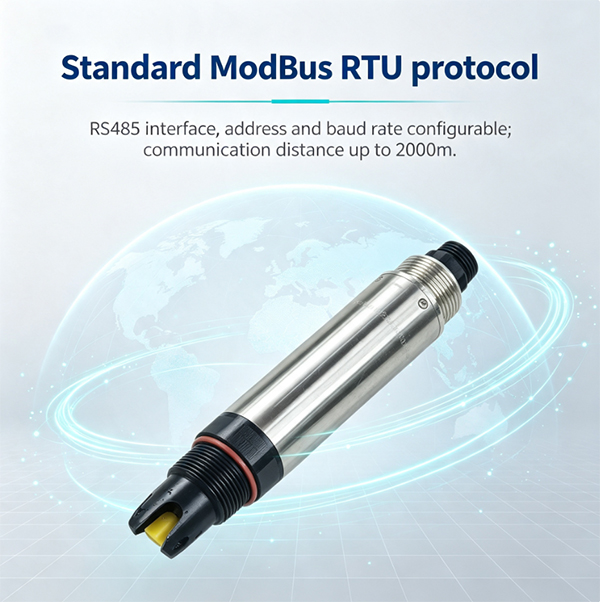

• Communication Protocols: RS485 Modbus RTU is the universal standard at industrial sites, facilitating connection with PLC, DCS or touch screens. Some sensors support 4–20 mA analog output for compatibility with traditional instruments. Dual-output sensors are preferred for improved system compatibility.
• Power Supply: Most sensors support wide DC input of 12~24 V with low power consumption. Verify matching with on-site power supplies.
• Maintenance Cost: ISE electrodes require regular cleaning and calibration, without frequent replacement of electrolyte or reagents, so maintenance workload is far lower than colorimetric sensors. As consumables, electrodes generally last 6 to 12 months. Pay attention to replacement cost and ease of installation. Calibration with standard solutions (zero point and slope calibration) is necessary; adjust calibration cycles according to operating environments.

5. Focus on Quality Assurance and After-Sales Service

Suppliers shall provide complete quality documents, calibration certificates and a minimum one-year warranty. Consumables such as electrodes usually carry a shorter warranty (e.g., six months), yet the whole unit warranty shall not be less than 12 months. In addition, suppliers need to provide timely technical support and spare parts supply to guarantee long-term stable operation of monitoring systems.

Summary

Online nitrite sensor selection follows five steps: Measurement Principle → Performance Specifications → Scenario Adaptability → Communication & Maintenance → After-Sales Support. For most conventional online water quality monitoring projects, ISE sensors stand out for cost efficiency thanks to reagent-free operation, low maintenance and rapid response. Colorimetric or full-spectrum sensors can be adopted selectively for ultra-high precision demands or extreme operating environments. Ultimately, select the most suitable reliable product by combining budget, maintenance capacity and monitoring objectives.https://www.zonewuiot.com/rs485_c15
